KEG WASHERS

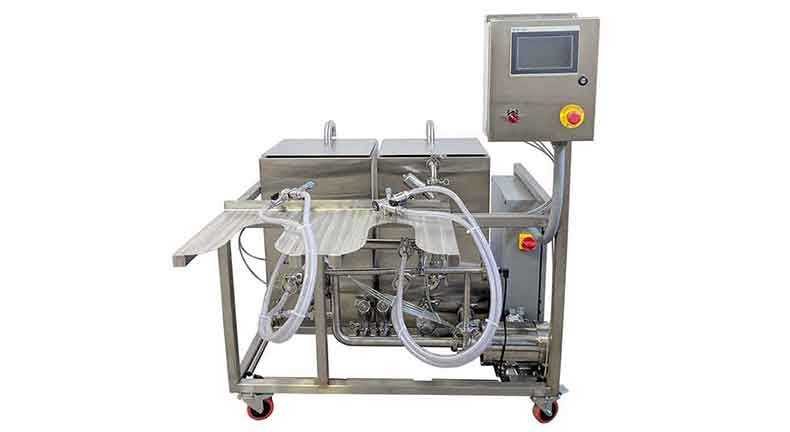

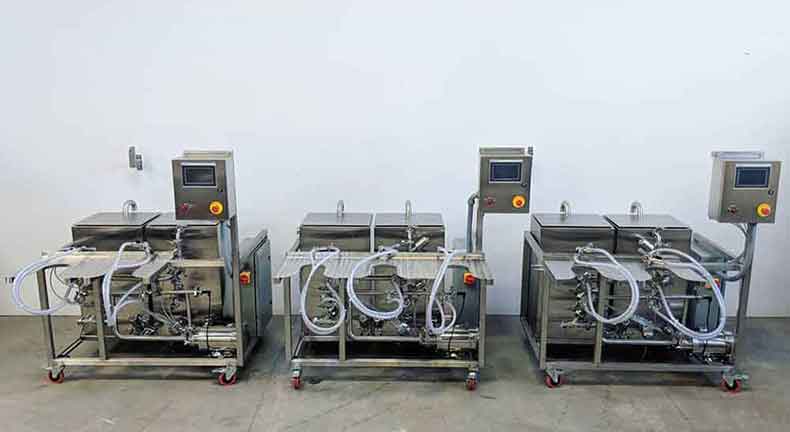

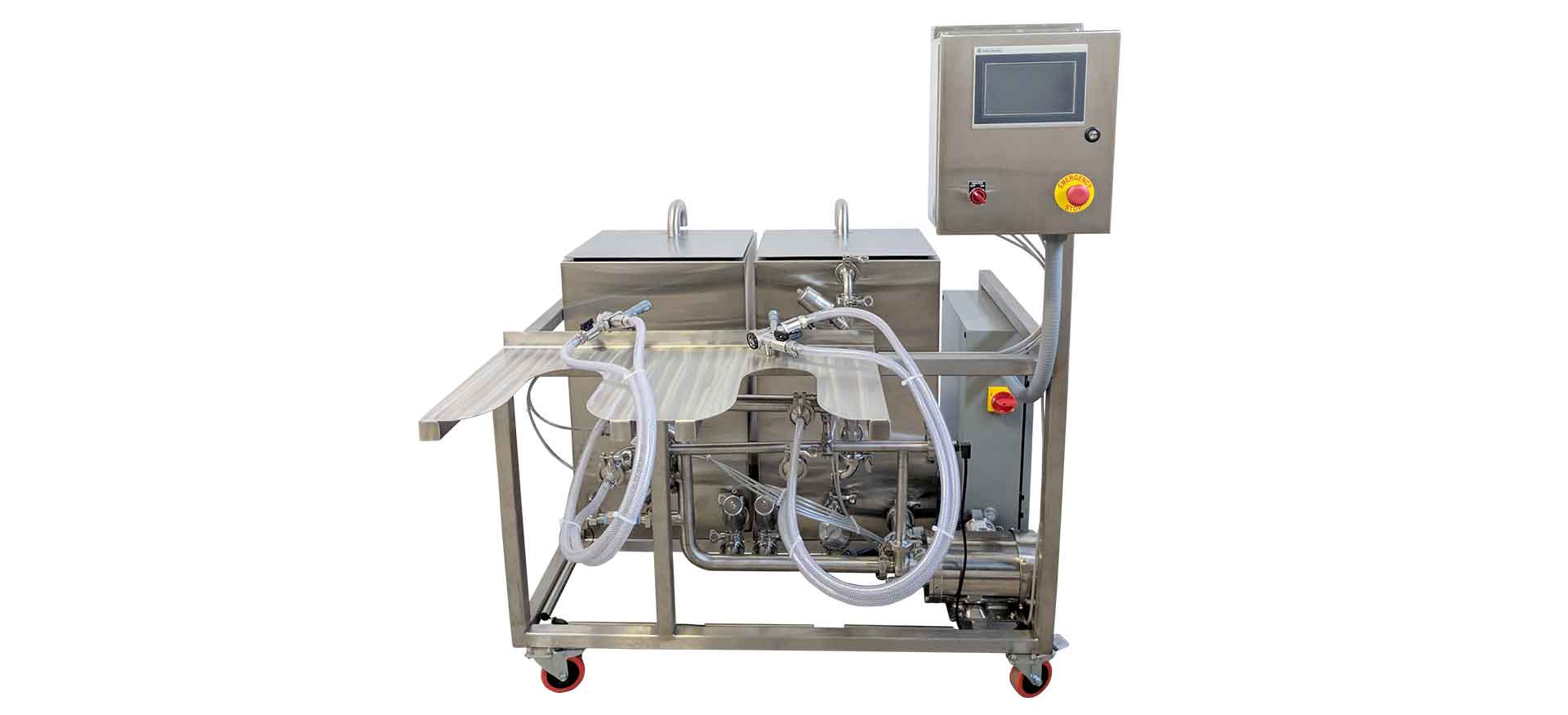

2 Head, 3 Head, and 4 Head Semi Automatic Keg Washers. Let the machine do the work while you focus on brewing.

Allen-Bradley Electronic Interface

Modern Electronic Controls

you can manage the semi automatic keg washing process from the advanced control panel. Fully adjustable parameters. Adjust the rinse and purge set points.Switch to manual mode if you need more fine control.

Long Guarantee

One and Two Year Warranty*

*We have one of the best warranties in the business. Two years parts for our Imperial Line of Keg Washers and one year for our Startup Brewery Economical Session Line Model. One year pump warranty on all models. We stand behind our products and love to see our customers excel in their own businesses.

Engineered To Run

Heavy Duty Construction

We pride ourselves on using the finest in materials, construction techniques, and welding. The result is a strong keg washer that can stand the test of time and rigorous usage.

Cascade Stainless Solutions All Keg Washer Specifications

Common Design Specifications
7-inch Allen-Bradley Touchscreen HMI
Allen-Bradley Micro 820 PLC and electrical components
Automatic Wash Cycle Sequence | “Set and Forget” Operation
Fully-Adjustable Keg Washing Cycle Set Points and Parameters
Digital Temperature and Pressure Read-Outs
Spear-cleaning functionality
Air and CO2 Purge Cycles
CO2 Keg Pressurization to User Determined Set-Point
Brewer-Friendly Interchangeable Tri-Clamp Valves and Fittings
304 Stainless Steel Frame
Heavy Duty Lockable Casters
5500W Stainless Steel Heating Element
Micro Matic Stainless Steel Keg Couplers
Air Requirements: 120 PSI @ 10 SCFM
Recommended Water Requirements: 3/4" Line at 50 PSI equaling ~10 GPM
Drain Requirement: No less than 1" ID drain hose
Power Requirements: Single or 3 Phase 240V 30 Amp

Dimensions 2-Head Keg Washer: 53” L x 45” W x 48" H
Dimensions 3-Head Keg Washer: 60” L x 45” W x 48" H
Dimensions 4-Head Keg Washer: 70" L x 45" W x 48" H
Capacity 2-Head Keg Washer: 26 Kegs Per Hour with Factory Settings
Capacity 3-Head Keg Washer: 39 Kegs Per Hour with Factory Settings
Capacity 4-Head Keg Washer: 52 Kegs Per Hour with Factory Settings

2 Head Session Line Economical Specifications
3/4 HP AMT Pump
30-gallon Stainless Steel Sanitizer Reservoir - Recirculated or Drained
30-gallon Stainless Steel Hot Caustic Reservoir
Stainless Steel Pneumatic Valves
Built in the USA - 1 Year Warranty

2 Head, 3 Head, or 4 Head Imperial Line Premium Specifications
1 HP CPE Systems Stainless Steel Wash-Down Pump - C+100MD - 7BBLs
40-gallon Stainless Steel Sanitizer Reservoir - Recirculated or Drained
40-gallon Stainless Steel Hot Caustic Reservoir
FESTO Stainless Steel Pneumatic Valves
Built in the USA - 2 Year Parts Warranty - 1 Year Pump Warranty
Save up to 6 different keg washing recipes
CIP Functionality: CIP Screen Allows Keg Washer to be Used as a CIP pump cart
